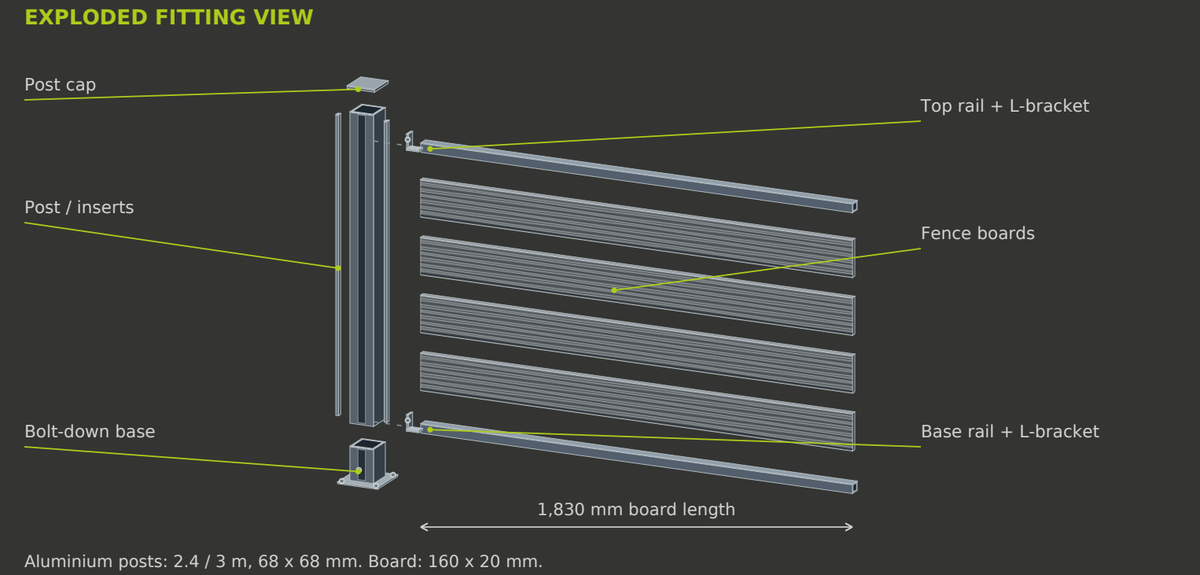

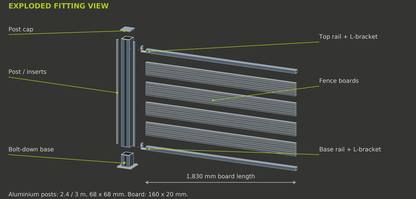

  • Illustrative armour fencing exploded from the Verde brochure. Main product photograph shows the selected colour and supplied item.

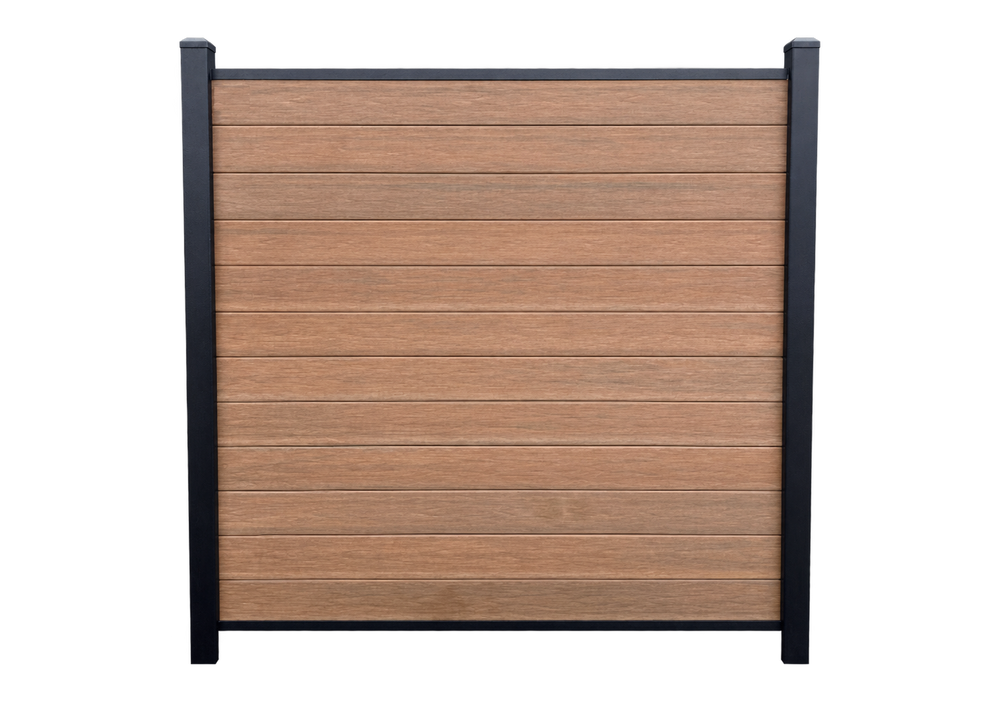

  • Armour 7h - Cedar - Composite Fence Kit - (Aluminium Post)
    Installed coverage
    Approximately 1.83 m of fencing per kit; standard 1.83 m tall bay

    Product view with current catalogue measurements. The photograph preserves the actual product shape; it is not a scaled cross-section.

    View Verde's technical sheet

1 4

Verde Composite

Armour 7h - Cedar - Composite Fence Kit - (Aluminium Post)

Armour 7h - Cedar - Composite Fence Kit - (Aluminium Post)

Choose a colour

Cedar
Cedar Charcoal

Verde product planner

Work Out What You Need

Plan your measurements, compare finishes and estimate what your project needs.

Verde product planner

Work Out What You Need

  1. 1Measure
  2. 2Choose finish / colour
  3. 3Your plan

Scaled schematic. Colours, grain and opening positions are indicative.

Loading your range…

Estimated quantity—Quantities only — request your merchant quote.
Description

The Cedar Armour 7H composite fence kit is a coordinated option for a new fence bay. The title identifies the post type. The standard kit contents are listed below.

  • Range: Armour 7H
  • Colour: Cedar
  • Product code: ARCOFECEKIT

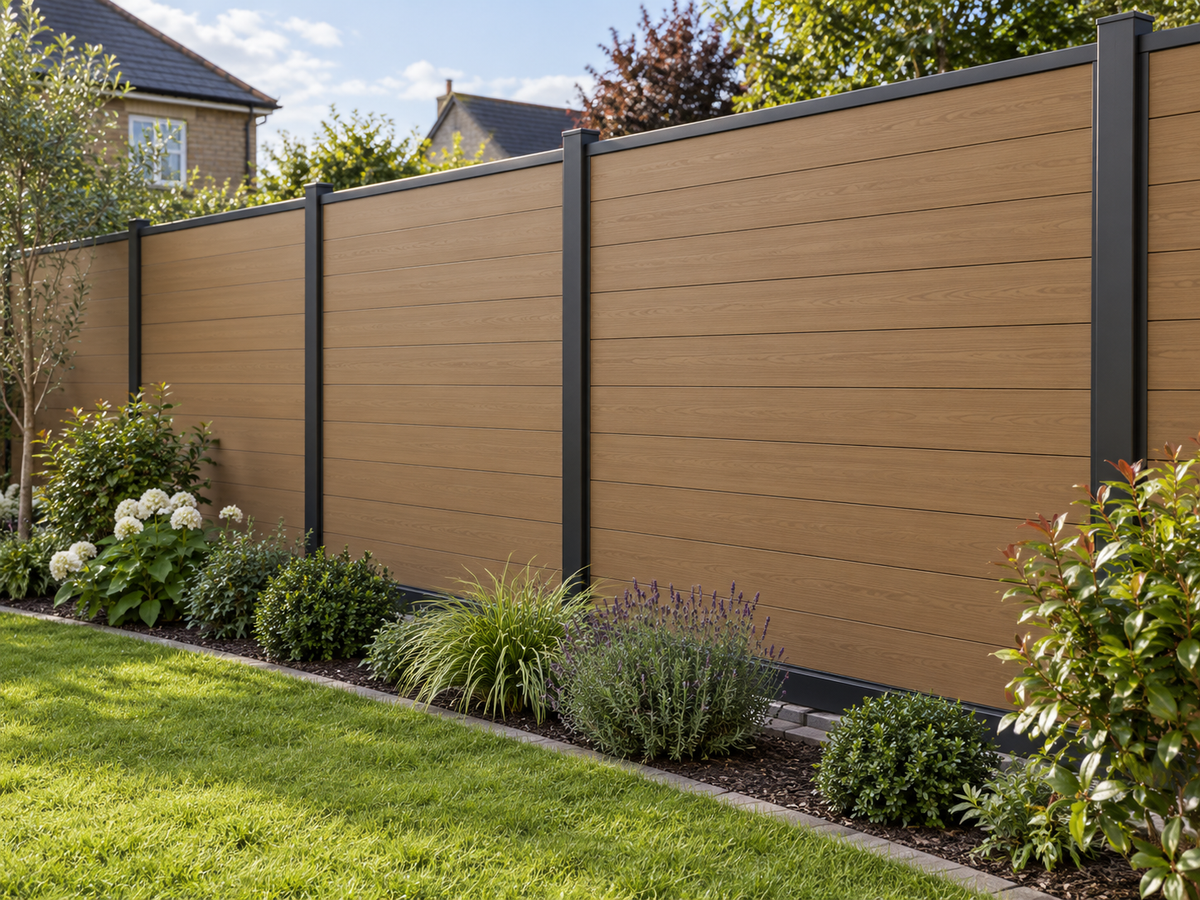

Installed image: illustrative Armour Fencing Cedar fence setting. Colour and kit details are indicative; refer to the product photograph for the actual item.

  • Kit contents: 12 matching fence boards; 1 aluminium post at 2.4 m; 1 post cap; 2 post inserts; 1 base rail; 1 top rail
  • Installed coverage: Approximately 1.83 m of fencing per kit; standard 1.83 m tall bay

Each fence kit includes one post. Add an end post to finish the run; confirm extra posts for corners and separate runs.

Technical documents

Evolved, SG & Armour fencing installation guide (PDF)

View full details
Specifications
BrandVerde Composite
Product typeFence
RangeArmour 7H
ColourCedar
Product codeARCOFECEKIT
Kit contents
  • 12 matching fence boards
  • 1 aluminium post at 2.4 m
  • 1 post cap
  • 2 post inserts
  • 1 base rail
  • 1 top rail
Installed coverageApproximately 1.83 m of fencing per kit; standard 1.83 m tall bay

Trade product details

Product codeARCOFECEKIT
Installed coverageApproximately 1.83 m of fencing per kit; standard 1.83 m tall bay
Kit contents
  • 12 matching fence boards
  • 1 aluminium post at 2.4 m
  • 1 post cap
  • 2 post inserts
  • 1 base rail
  • 1 top rail

Trims and components

Aluminium Post Kit - 68 x 68 @2.4m Aluminium Post Kit - 68 x 68 @2.4m Aluminium End Post Kit - 68x68 @2.4m Aluminium End Post Kit - 68x68 @2.4m Top & Base Rail Kit - 1.83m Top & Base Rail Kit - 1.83m

Check the profile and colour before ordering.

Ask us to confirm current stock and lead time before ordering.
