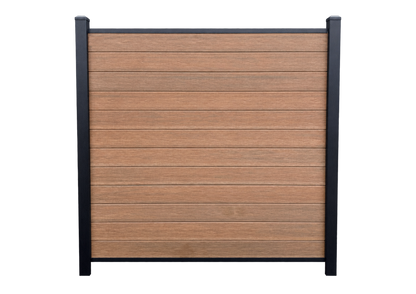

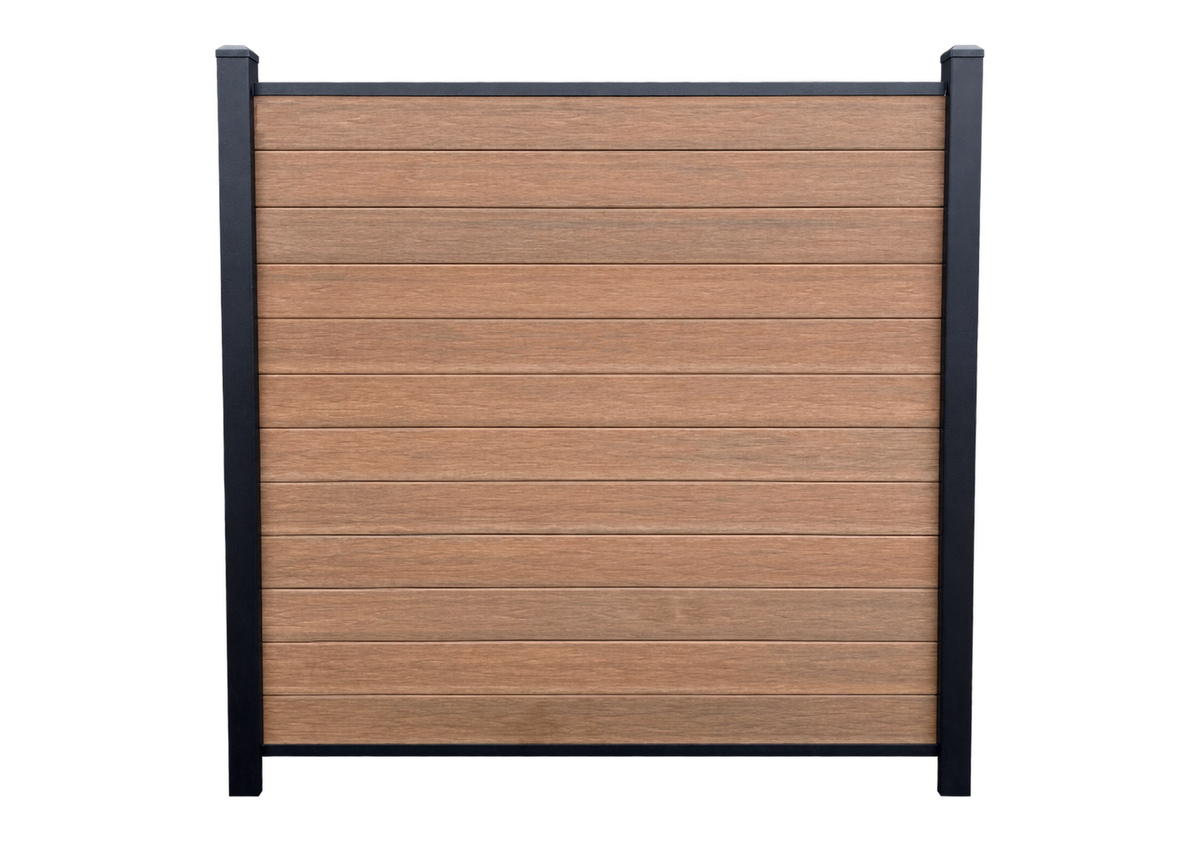

• Composite fencing kit on transparent background

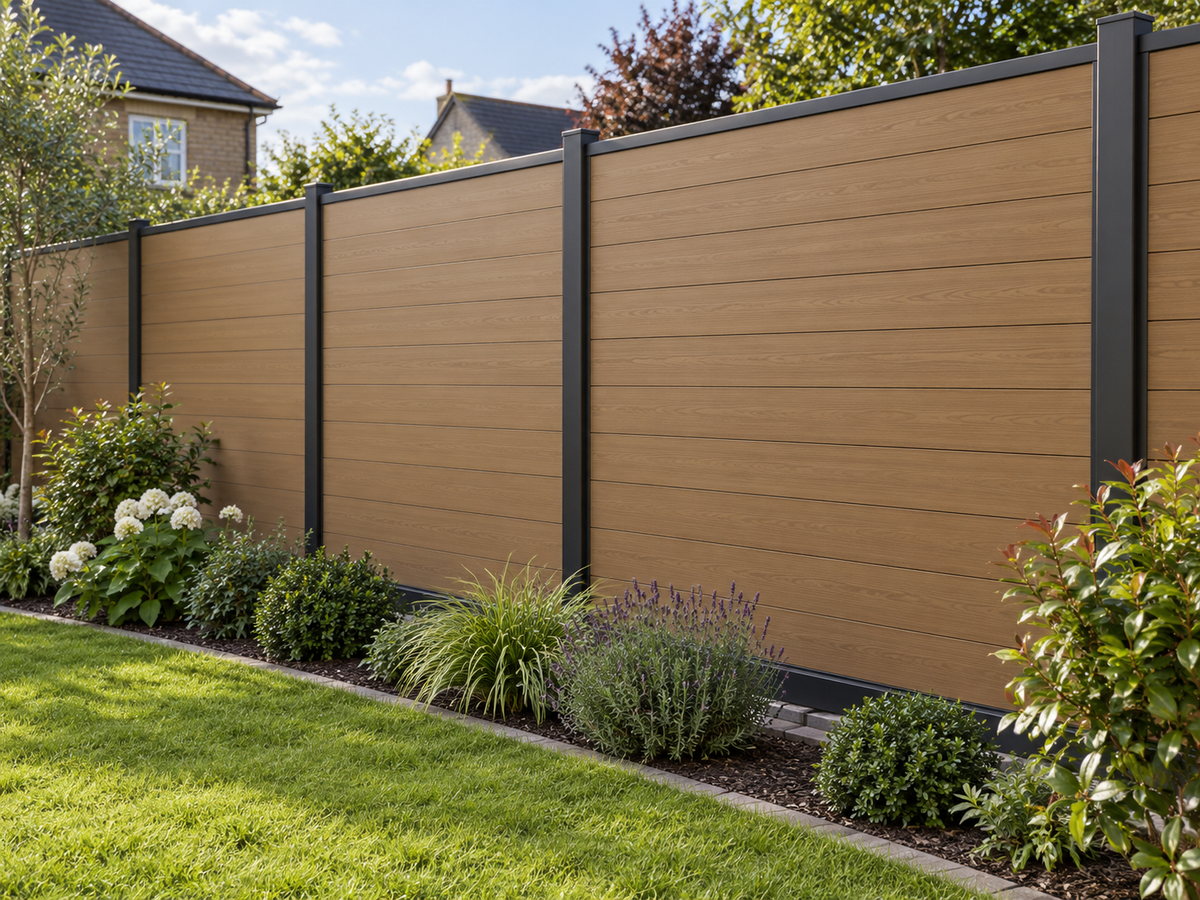

  • Illustrative finished Armour Fencing Cedar fence; colour and kit details indicative

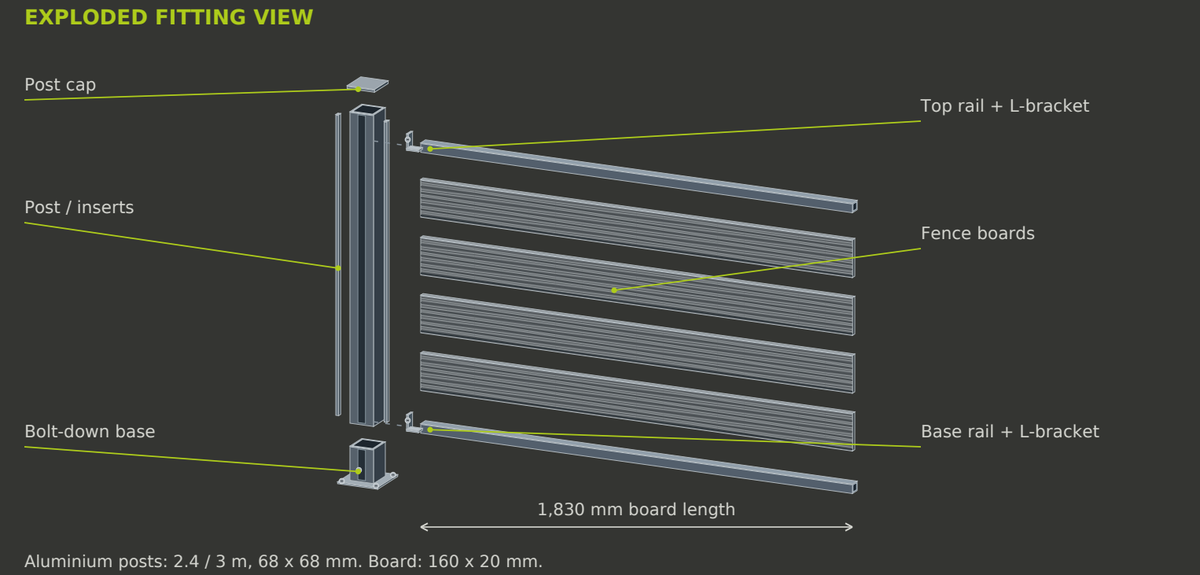

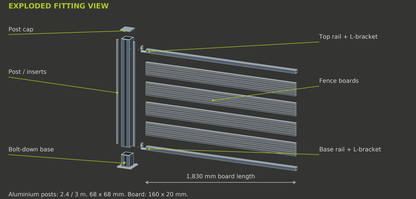

  • Illustrative armour fencing exploded from the Verde brochure. Main product photograph shows the selected colour and supplied item.
  • Technical profile drawing for Armour 7h - Cedar - Composite Fencing - 160x20 @1.83m
    Profile size
    160 × 20 mm
    Length
    1.83 m

    Profile drawing reproduced from the range technical sheet. Stock length and current catalogue dimensions are listed below the drawing.

    Profile: 160 × 20 mm. The current catalogue lists 1.83 m stock lengths; the older technical sheet lists 1.76 m. Confirm supplied stock length when ordering.

    View Verde's technical sheet

1 4

Verde Composite

Armour 7h - Cedar - Composite Fencing - 160x20 @1.83m

Armour 7h - Cedar - Composite Fencing - 160x20 @1.83m

Choose a colour

Cedar
Cedar Charcoal

Verde product planner

Work Out What You Need

Plan your measurements, compare finishes and estimate what your project needs.

Verde product planner

Work Out What You Need

  1. 1Measure
  2. 2Choose finish / colour
  3. 3Your plan

Scaled schematic. Colours, grain and opening positions are indicative.

Loading your range…

Estimated quantity—Quantities only — request your merchant quote.
Description

This Cedar Armour 7H composite fencing board is for building a matching fence run. Use the board dimensions below when calculating the number of boards and fixing components required.

  • Range: Armour 7H
  • Colour: Cedar
  • Dimensions: 160 × 20 mm
  • Length: 1.83 m
  • Product code: COFEARCE

Installed image: illustrative Armour Fencing Cedar fence setting. Colour and kit details are indicative; refer to the product photograph for the actual item.

Technical documents

Evolved, SG & Armour fencing installation guide (PDF)

View full details
Specifications
BrandVerde Composite
Product typeFence
RangeArmour 7H
ColourCedar
Dimensions160 × 20 mm
Length1.83 m
Product codeCOFEARCE

Trade product details

Product codeCOFEARCE
Profile size160 × 20 mm
Length1.83 m

Trims and components

Aluminium Post Kit - 68 x 68 @2.4m Aluminium Post Kit - 68 x 68 @2.4m Aluminium End Post Kit - 68x68 @2.4m Aluminium End Post Kit - 68x68 @2.4m Top & Base Rail Kit - 1.83m Top & Base Rail Kit - 1.83m

Check the profile and colour before ordering.

Ask us to confirm current stock and lead time before ordering.
