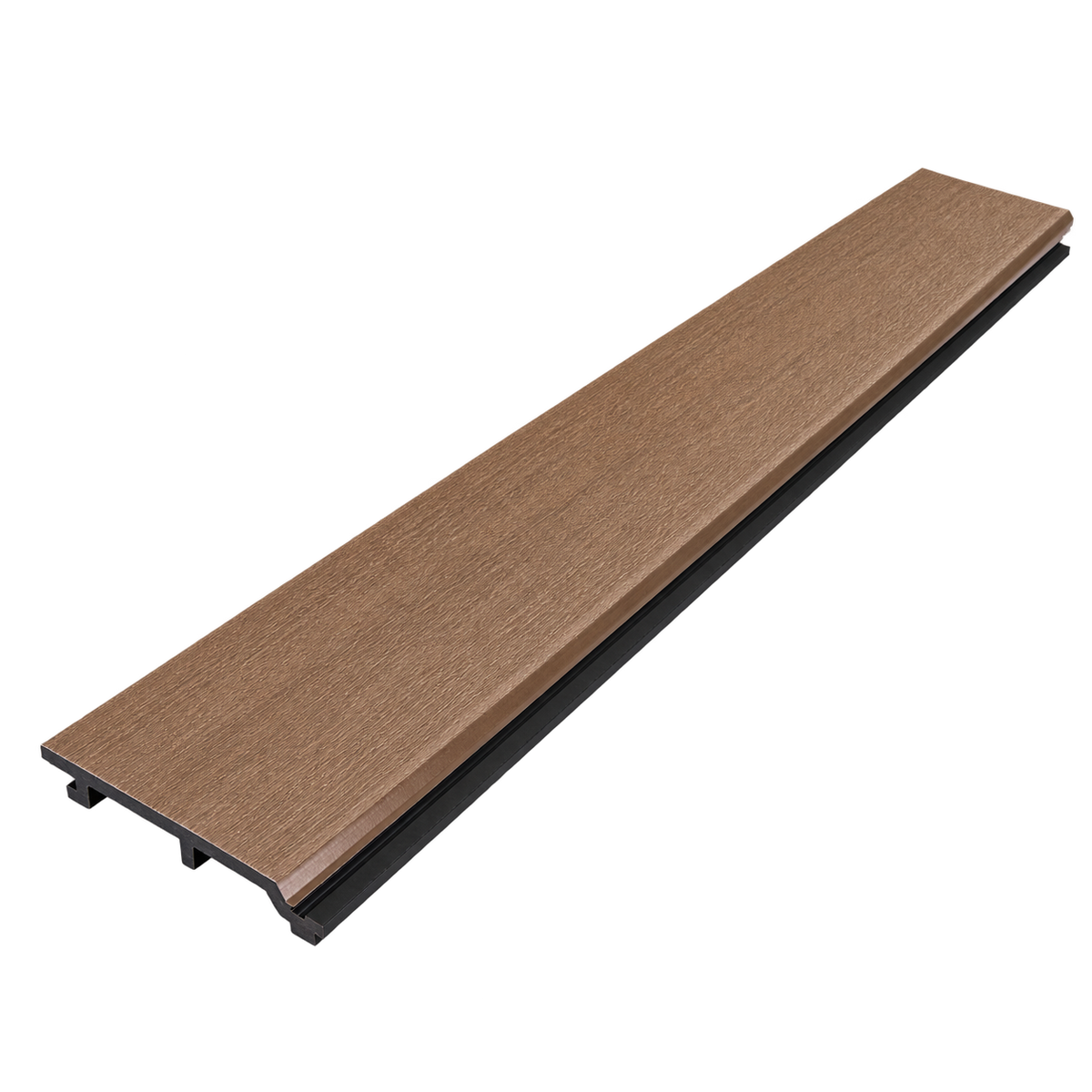

• Armour - Cedar - Composite Cladding - 174x21 — complete product view

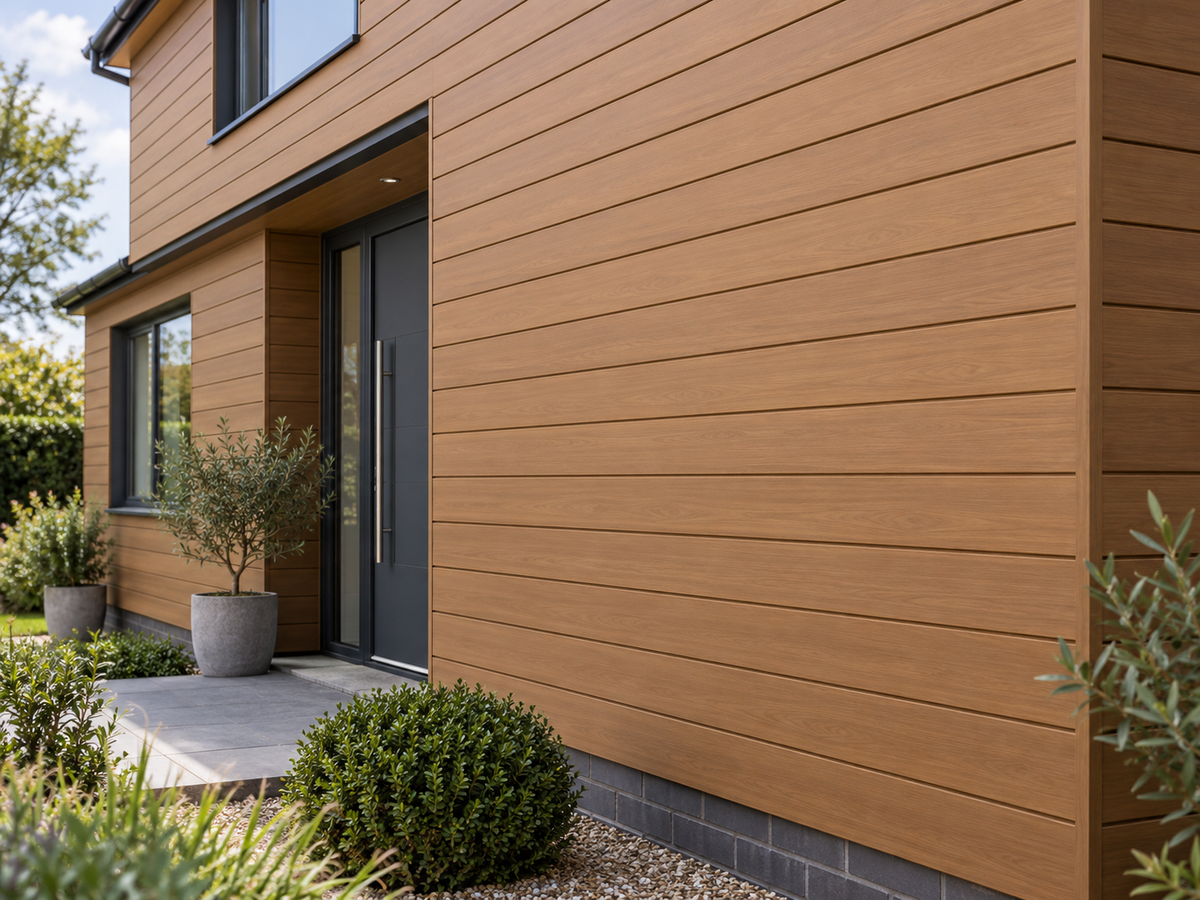

  • Illustrative finished Armour Cladding Cedar setting; colour and fascia detail indicative

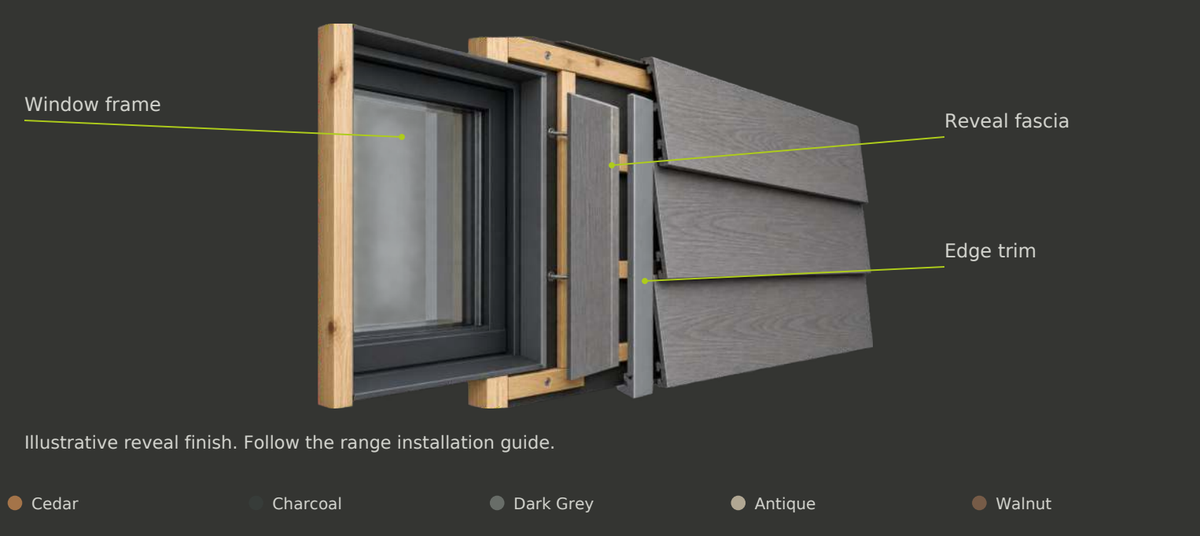

  • Illustrative armour cladding reveal from the Verde brochure. Main product photograph shows the selected colour and supplied item.

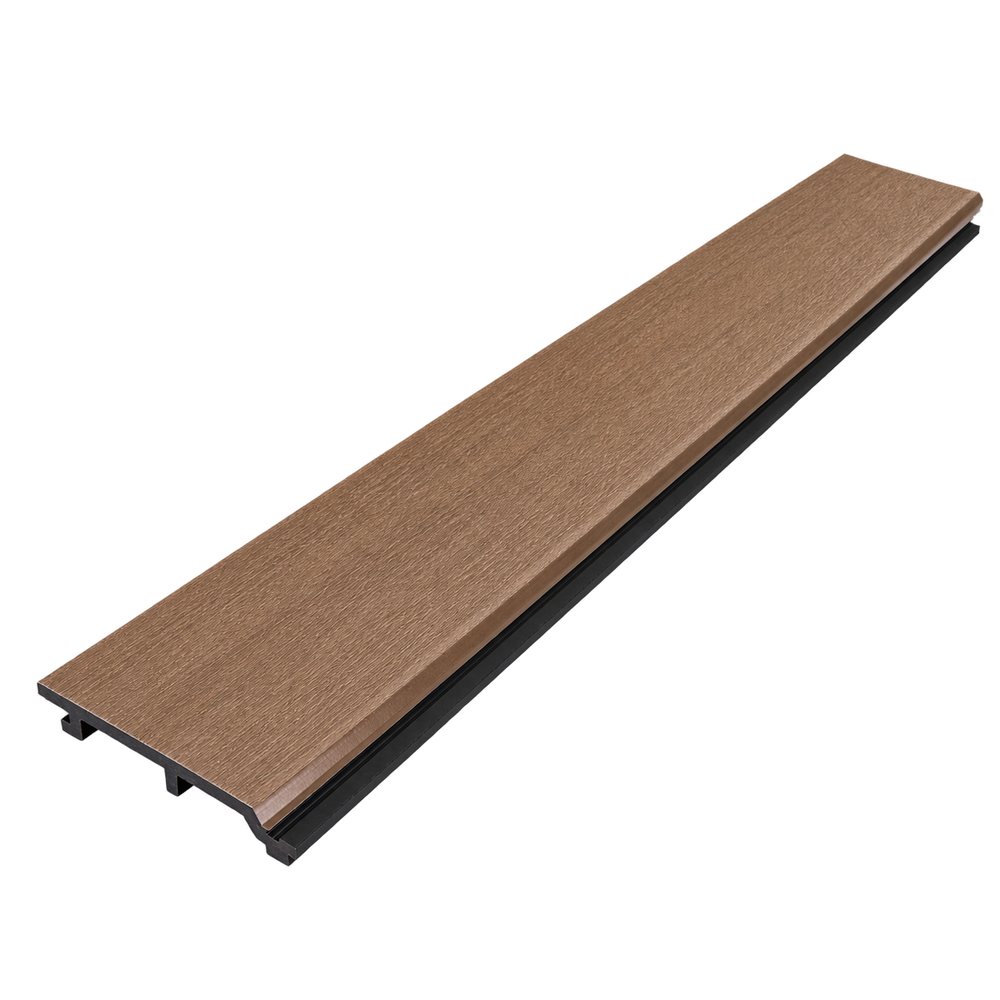

  • Armour - Cedar - Composite Cladding - 174x21 @3.6m
    Profile size
    174 × 21 mm
    Length
    3.6 m

    Product view with current catalogue measurements. The photograph preserves the actual product shape; it is not a scaled cross-section.

    View Verde's technical sheet

1 4

Verde Composite

Armour - Cedar - Composite Cladding - 174x21 @3.6m

Armour - Cedar - Composite Cladding - 174x21 @3.6m

Choose a colour

Cedar
Cedar Charcoal Dark Grey Antique Walnut

Verde product planner

Work Out What You Need

Plan your measurements, compare finishes and estimate what your project needs.

Verde product planner

Work Out What You Need

  1. 1Measure
  2. 2Choose finish / colour
  3. 3Your plan

Scaled schematic. Colours, grain and opening positions are indicative.

Loading your range…

Estimated quantity—Quantities only — request your merchant quote.
Description

The Armour cladding board in Cedar is designed for exterior wall cladding. Use the listed dimensions to plan your cladding area and matching trims.

  • Range: Armour
  • Colour: Cedar
  • Dimensions: 174 × 21 mm
  • Length: 3.6 m
  • Product code: 1

Boards per pallet: 210

See our installation guides and technical sheets for fitting information.

Technical specifications

Effective installed width: 150 mm  |  Coverage per board: 0.54 m²  |  Board weight: 7.8 kg

Linear thermal expansion (-20 to 80 °C): 35.8 × 10-6 K-1  |  Fire classification: Class D  |  Warranty: 20 years

Download the Armour cladding technical sheet (PDF)

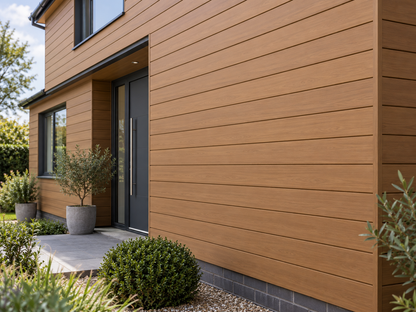

Installed image: illustrative visualisation of Armour Cladding Cedar. Colour and profile are indicative; refer to the product photograph for the actual finish.

View full details
Specifications
BrandVerde Composite
Product typeCladding
RangeArmour
ColourCedar
Dimensions174 × 21 mm
Length3.6 m
Product code1
Boards per pallet210

Trade product details

Product code1
Profile size174 × 21 mm
Length3.6 m

Trims and components

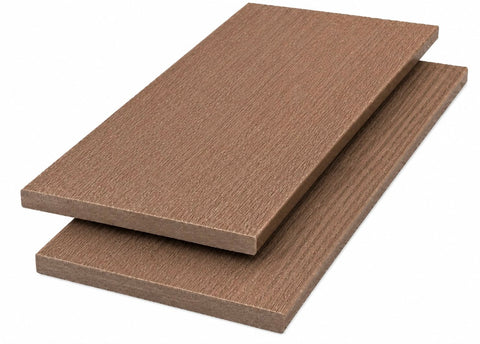

Cedar - Composite Cladding Fascia - 140x11.5 @ 3.6m Cedar - Composite Cladding Fascia - 140x11.5 @ 3.6m

Check the profile and colour before ordering.

Ask us to confirm current stock and lead time before ordering.
