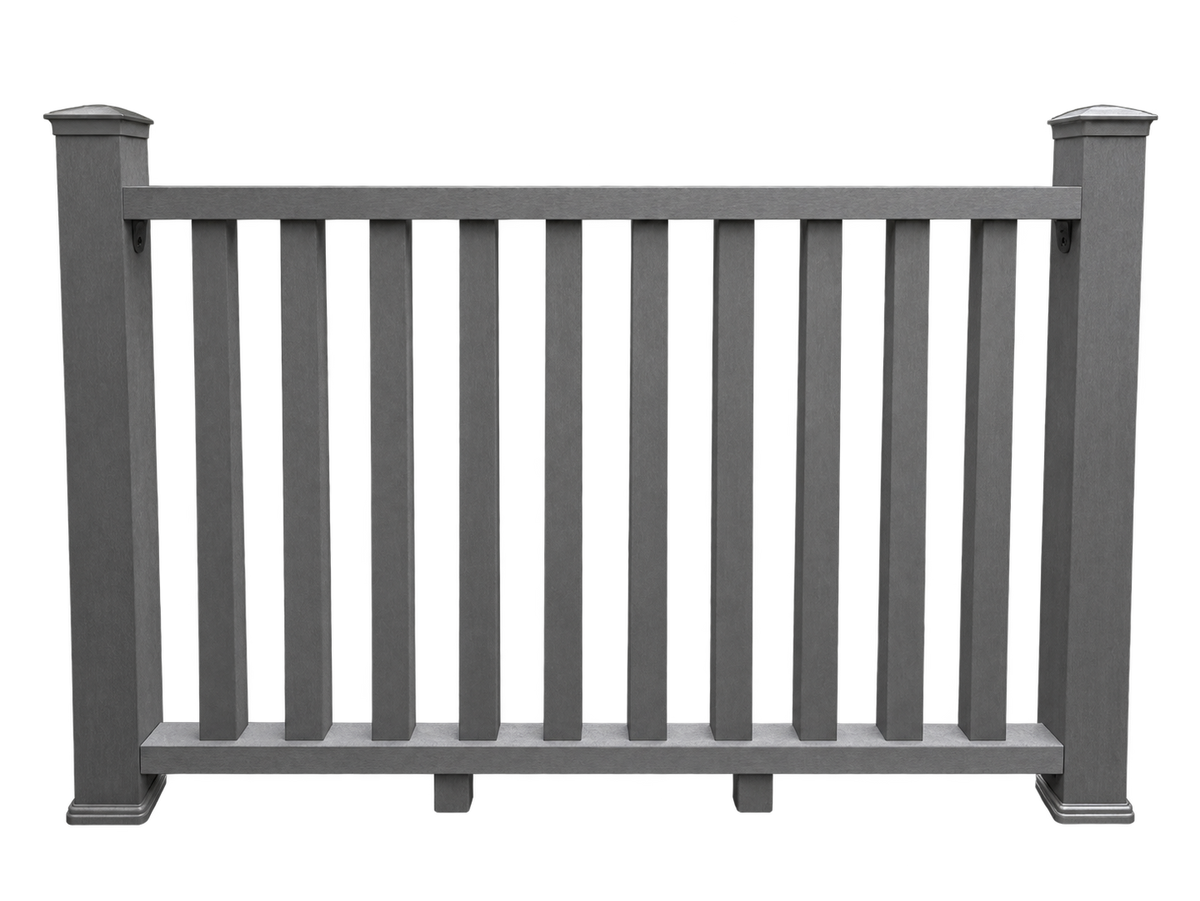

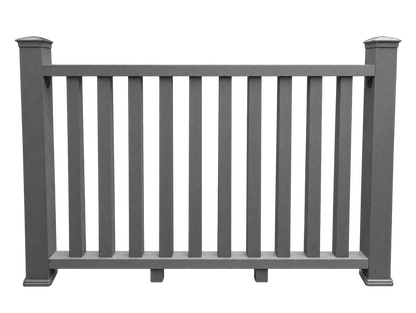

• Slate Grey Balustrade Kit on transparent background

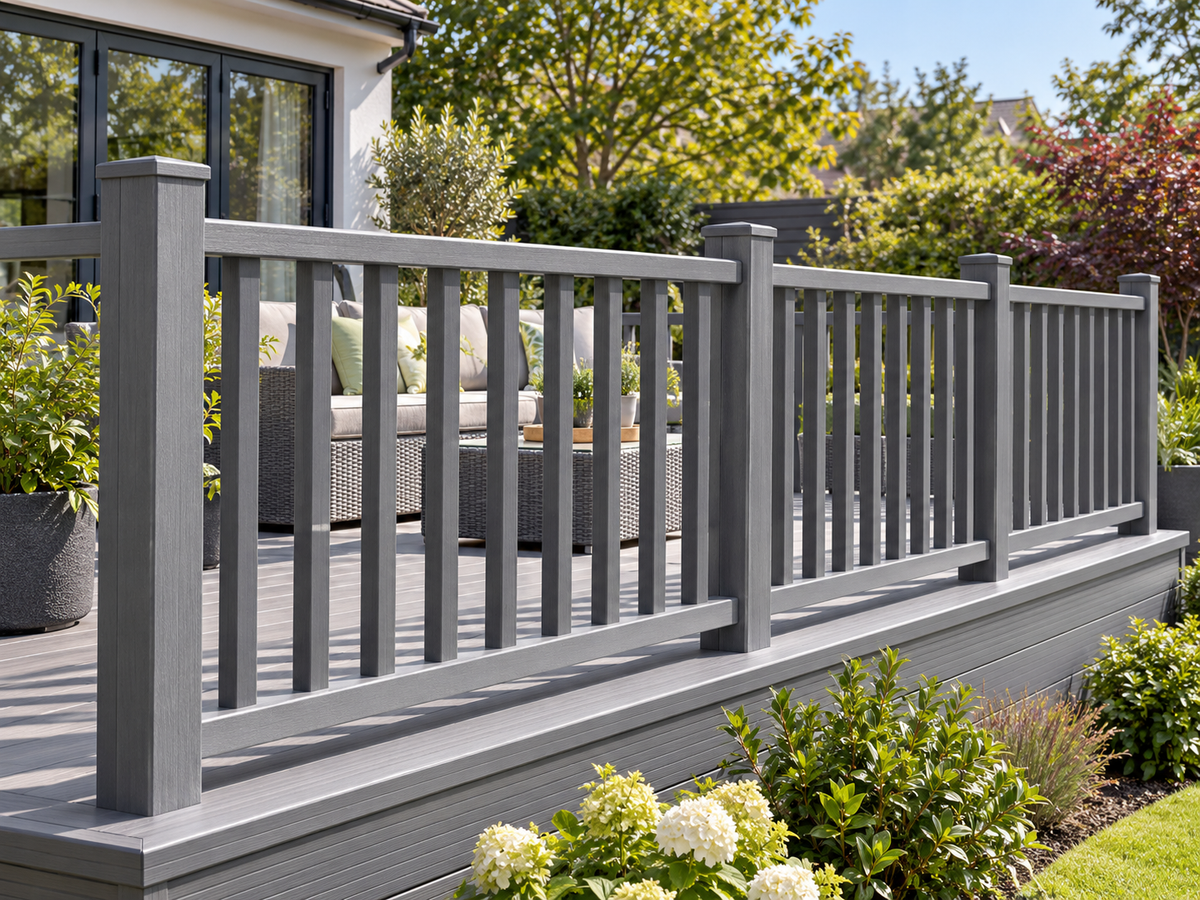

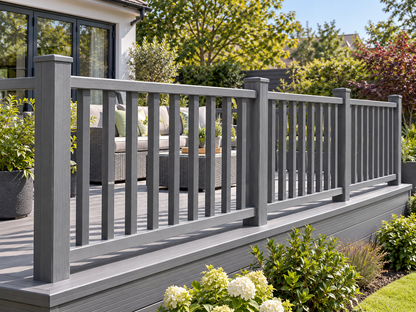

  • Illustrative finished Balustrade Slate Grey balustrade; installation details indicative

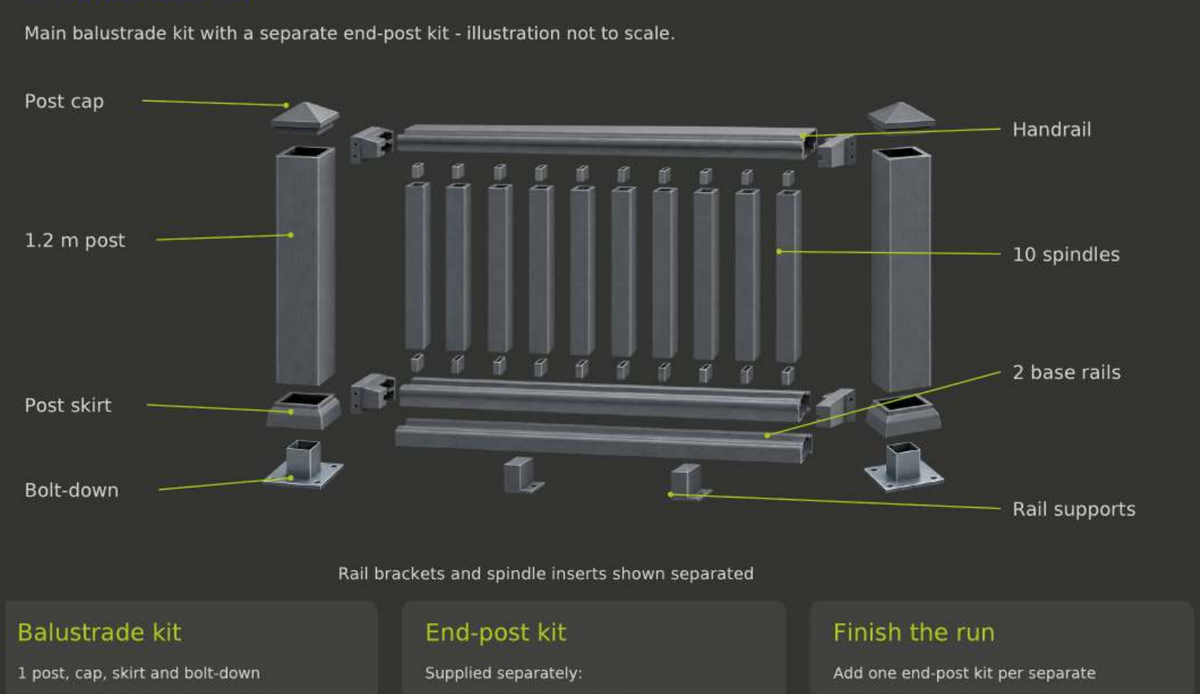

  • Illustrative balustrade fitting detail from the Verde brochure. Main product photograph shows the selected colour and supplied item.
  • Cardboard packPackaging view. Refer to the product specifications for the supplied items and pack quantity.
  • 1,600 mm post centres 1,695 mm overall 1,200 mm Separate end post
    Kit length including the post
    1,695 mm including end post
    Post height
    1,200 mm
    Spindles per kit
    10

    The main kit includes one post and 10 spindles. Add a separate end-post kit to finish an open end. The 1,200 mm dimension is post height, not a certified guarding height.

    View Verde's technical sheet

1 5

Verde Composite

Balustrade Kit - Slate Grey

Balustrade Kit - Slate Grey

1,695 mm including end post

Choose a colour

Slate Grey
Anthracite Slate Grey

Verde product planner

Work Out What You Need

Plan your measurements, compare finishes and estimate what your project needs.

Verde product planner

Work Out What You Need

  1. 1Measure
  2. 2Choose finish / colour
  3. 3Your plan

Scaled schematic. Colours, grain and opening positions are indicative.

Loading your range…

Estimated quantity—Quantities only — request your merchant quote.
Description

This Slate Grey balustrade kit is part of the Verde Composite balustrade range. Use the matching end post kit to finish an open end. Contact us with your layout to confirm quantities.

  • Colour: Slate Grey
  • Product code: SLATEBAL

Installed image: illustrative Balustrade Slate Grey balustrade setting. Colour and installation details are indicative; refer to the product photograph for the actual item.

Each balustrade kit includes one post. For a freestanding run of connected kits, add one matching end-post kit to complete the run. Add one end-post kit for each separate run; wall connections, corners and special layouts should be confirmed with our team.

  • Kit contents: 1 post at 1.2 m; 1 post bolt-down; 2 base rails; 1 handrail; 10 spindles; 2 base rail supports; 4 rail brackets; 24 spindle inserts; 1 post cap; 1 post skirt; 4 Screw-A; 8 Screw-B; 30 Screw-C
  • Installed coverage: 1.695 m overall including the separately supplied end post; 1.6 m between post centres

Technical documents

Evolved balustrade technical sheet (PDF)

Evolved balustrade installation guide (PDF)

View full details
Specifications
BrandVerde Composite
Product typeBALUSTRADE
ColourSlate Grey
Product codeSLATEBAL
Kit contents
  • 1 post at 1.2 m
  • 1 post bolt-down
  • 2 base rails
  • 1 handrail
  • 10 spindles
  • 2 base rail supports
  • 4 rail brackets
  • 24 spindle inserts
  • 1 post cap
  • 1 post skirt
  • 4 Screw-A
  • 8 Screw-B
  • 30 Screw-C
Installed coverage1.695 m overall including the separately supplied end post; 1.6 m between post centres

Trade product details

Product codeSLATEBAL
Installed coverage1.695 m overall including the separately supplied end post; 1.6 m between post centres
Kit contents
  • 1 post at 1.2 m
  • 1 post bolt-down
  • 2 base rails
  • 1 handrail
  • 10 spindles
  • 2 base rail supports
  • 4 rail brackets
  • 24 spindle inserts
  • 1 post cap
  • 1 post skirt
  • 4 Screw-A
  • 8 Screw-B
  • 30 Screw-C

Trims and components

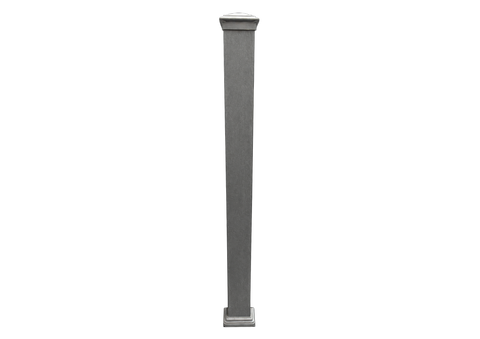

Slate Grey Balustrade End Post Kit Slate Grey Balustrade End Post Kit

Check the profile and colour before ordering.

Ask us to confirm current stock and lead time before ordering.

Explore the range

Evolved Balustrades

Browse matching products and finishing accessories.
